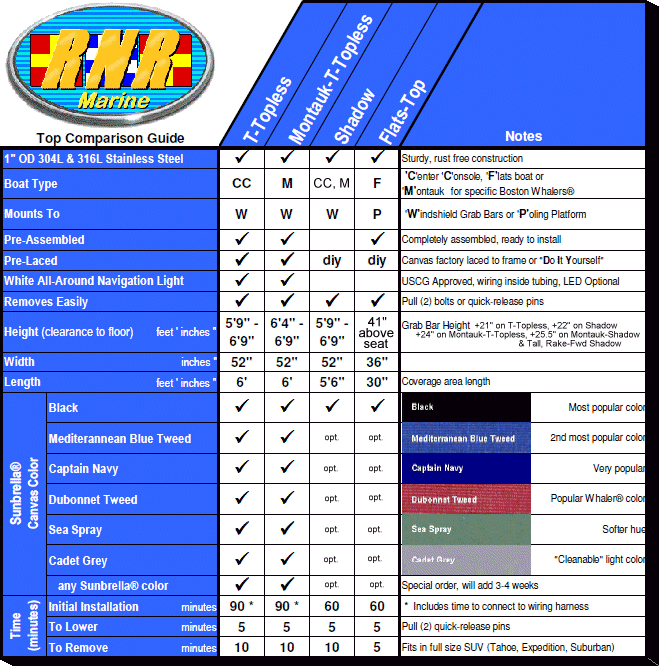

RNR-Marine Top Technical Specifications and Model Selection Guide

RNR-Marine manufacturers a range of folding and removable tops for center console, rigid inflatable (RIB) and flats boats, ranging from the universal fit Shadow to the semi-custom T-Topless, Montauk-T-Topless and Flats-Top. All tops are constructed from TIG welded, high polish type 304L and 316L stainless steel with Sunbrella® marine fabric canvas to last the life of your boat.

The T-Topless, Montauk-T-Topless and Shadow fit most Center Console and Rigid Inflatable (RIB) boats equiped with stainless steel grab bars (no aluminum) around the windshield. All three tops install in less than an hour (plus 30 minutes to connect the light's wiring) using only a 3/16" allen wrench, phillips screwdriver and 7/16" box end wrench.

T-Topless
T-Topless Coverage

T-Topless is a sturdy, folding, welded stainless steel T-Top which installs in an hour and raises, lowers or removes in seconds allowing the owner to keep their center console boat in a garage or under a boat cover or their rigid inflatable boat (RIB) in a yacht bay. Nine size combinations, an integrated navigation light and availability in any Sunbrella® canvas color produce a custom look and feel.

  • Models: Skinny, Narrow, Medium, Wide or Montauk to fit from 23" to 39" wide Grab Rails. A Raked version is available in each width for boats having grab bars that are angled more than 30 degrees (30-75 degrees) from vertical.
  • Frame: NC formed, polished 304L tubing NC orbital TIG welded to 316 fittings with forward facing "Visor" and center "Top Bow" bar for improved shape and rigidity. All components factory assembled and welded. Stablizer bar mounted for port or starboard helm configuration.
  • Light: USCG approved Perko® all-around Nav-Lite above canvas to avoid glare, with Ancor® marine grade 14AWG tinned copper jacketed wiring hidden inside frame. Connects via male/female pin connectors to 36" instrument panel connection lead.
  • Canvas: 6 colors of Sunbrella® marine canvas, factory laced to frame.
  • Size: 6' long X 52" wide rear X 40" wide front = 23 sq.ft coverage, models fit windshield grab bars from 23 to 39 inch width
  • Height:
    • T-Topless: 23" above front grab-rail mount (typically 6'4");
    • Montauk-T-Topless: 28.6" above grab-rail mount (6'4" side and 6'9" interior head-room)
  • Weight: 28 pounds
  • Assembly: Factory Assembled and Laced.
  • Options: Rod Holders, 54-inch Triple-Bend Legs, any Sunbrella® color canvas, Raked version
  • Price: T-Topless $1,589 , Montauk-T-Topless $1,639
    plus shipping
Shadow
Shadow Coverage

The Shadow is a great value in a welded, stainless frame folding top which assembles and installs about an hour, provides refreshing shade and raises, lowers or removes in seconds to fit in a garage or under a boat cover. This universal design can be used on a variety of center console boats and RIBs.

  • Models: Vertical ( Grab rails with less than 20 degrees rake) or Raked ( Grab rails with 20 to 65 degress rake) for Grab Rail widths of 29" to 37" inches
  • Frame: NC formed, polished 304L tubing, NC orbital TIG welded to 316 fittings. Stablizer bar mounted for port or starboard helm configuration.
  • Canvas: Black or Mediterranean Blue Tweed Sunbrella® marine canvas.
  • Size: 5'6" long X 52" wide rear X 37" wide front = 21 sq.ft coverage, fits windshield grab bars from 29 to 37 inch width.
  • Height: 23" above front grab-rail mount (typically 6'4").
  • Weight: 19.5 pounds.
  • Assembly: Assemble Port to Starboard Frame using Rear Cross Bar, and lace canvas to top.
  • Options: Rod Holders, 54-inch Triple-Bend Legs
  • Price: $973 with FREE Shipping

Center Console Sizing:

Center Console Dimensions Send your measurements or look up your boat in the table
T-Topless, Montauk-T-Topless or Shadow
. Grab Bar Width (center to center): inches*
. Grab Bar Height (floor to top of cross bar): inches*
. Grab Bar Diameter:7/8" ,1.00" or1-1/4" inches
. Cooler Height (from floor) = inches (Igloos are typically 19.5 inches)
Tip: Bar Height must be 28 inches above Cooler for clearance to rotate forward!
Boat: Make/Model: Year:   Length: feet
Name : First:  Last:
Email: *
Comments:
Note: * = required

The Flats-Top is avaiable in several congiurations, widths and heights to fit most Flats Boats' poling platforms or console.

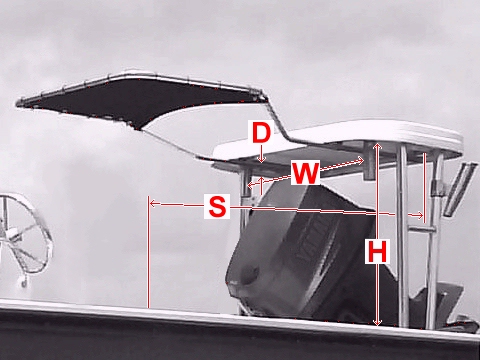

Flats-Top Sizing:

Flats-Top Dimensions Send your measurements or look up your boat:
Poling Platform, Folding Platform or Console Mount
Poling Platform Flats-Top:
. Poling Platform Width: inches
. Poling Platform Height (deck to bottom): inches
. Poling Platform Thickness (top to bottom): inches
. Poling Platform "X" to Seat Front: inches
Console Mounted Flats-Top:
. Seat to Rear Rod Holder: inches
. Width Between Rod Holders (side to side): inches
Boat: Make/Model: Year:   Length: feet
Name : First:  Last:
Email: *
Comments:
Note: * = required
Find you boat in the table below, then select Sunbrella© canvas color and order.
If you boat isn't listed or is in the "Should Fit" column, measure and look up the width below or fill in the form above!
Top Model:


Enter your Boat Make or Model:

Boat Make
Skinny
T-Topless
23" to 27" Grab Bar Width

(measured center to center) 		Narrow
T-Topless
27" to 31"
Grab Bar Width
or Shadow
29" to 37"
Grab Bar Width 		Medium
T-Topless
31" to 35"
Grab Bar Width
or Shadow
29" to 37"
Grab Bar Width 		Wide
T-Topless
35" to 39"
Grab Bar Width
or Shadow
29" to 37"
Grab Bar Width 		Flats-Top (coming in 2010!)

Mounts under the the poling platform or on the console of most flats boats. 		Should fit ...
RNR-Marine has reviewed the boat's grab bar layout and the T-Topless or Shadow will fit, but we have no measurements in our database yet. Simply measure to order. 		Will NOT fit
The grab bar layout is incompatible, made from aluminum, or won't fold down.
AB Inflatables
? Grab Bars 		Oceanus 14VST & 15VST Profile A16 Profile F19 & F19 Stern Drive MACC 19;

Profile F14, F15 & F24 		(too narrow), 19VST & 24VST (too wide)
Ventus, Navigo, Lammina & Nautilus series (no windshield grab bars)
Action Craft
 1760, 1820, 1820, 1890 & 2020 Flatsmaster /SE;
1620, 1622, 1710TPS & 1720 Flyfisher /SE /Hybrid;
1622, 1710, 1720, 1720se & 1820 Hybrid;
1600, 1802, 1802te & 2002 Coastline Flats Pro;
1800 Flats Pro /TE;
1800, 2000 & 2100 Coastline;
2000 & 2010T Flats TE;
2010 T Bay TE,
1800 Bay Pro TE,
Newport V200 Turtle Bay,
1720, 1760 & 2000 Bayrunner,
1600 Escape & Escape TE,
2000 & 2010T Island Runner /TE;
1710FB, 1810FB & 1810FBSE Bass,
Eagle 2000,
1760, 1810, 1890 & 2020 Fastbasser /FB /FBSE ;
Bluewater 1940
Allmand
?" Grab Bars 		13' Center Console Open Fisherman 19, 20 & 21 Center Console Open Fisherman;

20, 21 & 22 Panga;

Rigid Inflatable Boats:
470, 520, 560, 610, 720, 16' Sport
American Skiff
?" Grab Bars 		Coral Bay 165cc & 18cc Coral Bay 15xl, 19cc
Angler
?" Grab Bars 		2000, 2200 & 220 Grande Bay 180cc, 180F, 183F, 204F, 204FX, 220F, 220VFX;

22, 26 & 2600 Panga;

173 Bay, 20 Bay 		173F & 173 Bay (no grab bars)
Ankona
 Copperhead, Native,
Native SUV,
Tortuga
Aquasport ,
Classic Aquasport
?" Grab Bars 		17, 165, 175, 185, 195, 200, 205 & 210 cc Osprey,
2100
Avon Inflatables
1" Grab Bars (confirm)
Adventure
580 &
620 (pre-2008) 		SR6.4M, SR7.4M;

Adventure
560 (pre-2005)
& 850
Bay Craft
?" Grab Bars 		Skiff 17,
Flats 175 & 180 Explorer,
Tunnel 180 Explorer,
Flats 185 Edition
Bay Stealth
?" Grab Bars 		2230 & 2460 bsvl Liner;
186, 196 & 216 ccf Bluewater;
1679, 1879 & 2194 skf Skiff
Blue Fin
?" Grab Bars 		17 & 18;
Cuttyhunk 19, 21 & 23;
Dory 15
Blue Wave
?" Grab Bars 		170 Super Tunnel;

160, 180 & 200 V-Bay 		180 & 190 Classic;

190 & 220 Deluxe;

200 V-Special
 160 V-TEC, 170 Skiff,
170 Classic;
180, 190 & 220 Super Tunnel;
1900 STL, 220 T-Special,
1900 VLC, 213 Pulse,
220 Super Tunnel Deluxe,
220 Striper, 220 Deluxe Pro,
220 Xtreme, 220 V-Bay LC,
220 Striper, 244 Magnum
2200 & 2400 Pure Bay
Bombard RIBs
?" Grab Bars 		Ribster 500;
Explorer SB 500, 550 & 640 (may interfere with forward reclining console);
Explorer DB 500, 550 & 600
Boston Whaler
7/8" windshield grab bars,

Montauk 17 seat bars are 7/8" dia.,

Montauk 170, 190 and Dauntless 180 seat bars are 1" dia. 		200x Montauk-150,
1967-1990 Sport-15,
199x-2001 Dauntless-16,
2002-2009 Dauntless-160 		Montauk T-Topless:

1973-1975Montauk-1616,
1976-2001Montauk-1717,
2002-2009Montauk-170170 ,
1976-2001Montauk-1919,
19xx-2001 Dauntless-18,
2002-2009 Dauntless-180,
1981-1990 Outrage-18,
1975-1990 Newport 17,
1979-1989 Striper 17 side-console
Medium T-Topless or Shadow:

19xx-2001 Dauntless-18,
2002-2009 Dauntless-180,
1993-1998 Dauntless-15,
1981-1990 Outrage-18,
1989-1995 Outrage-17 		2002-2010 Montauk 190 Outrage 19,
others to be determined 		1975-1976 Bass-Boat 17 (no grab bars),

Won't fold down on:

1963-1975 Sakonnet-16,
2004+ 16',
1996-1999 17-Outrage-II (overhanging bar),
1996 19-Outrage-II (must remove cooler),
199x Dauntless-17
Canyon Bay
?" Grab Bars 		Canyon Bay 18 Canyon Bay 2270 (no grab rails)
Cape Craft
?" Grab Bars 		15 Flats & 175 Flats 16cc, 17cc, 18cc, 20cc,

17, 19 & 22 Bay,

17, 19 & 22 Tunnel
Cape Horn
?" Grab Bars 		17, 19, 21
Caribe Inflatables
?" Grab Bars 		DL15, DL17, DL20,
CL13, CL14
Carolina Skiff
?" Grab Bars 		J1650SS,
1655DLX, 1765V, JV17, 1765DLX, 1780DLX,  1965V, 198DLV, 1965DLX, 1980DLX, 1980V, 218DLV, 2180DLX, 2380V, 238DLV, 2390DLX-EW, 2480DLX, 2590DLX-EW, 258DLV, 2790DLW-EW
Century
?" Grab Bars
2001cc Center Console 		1701cc & 1801cc Center Console;

1900, 2102, 2202 & 2400 Inshore 		1700 & 1800 Center Console;
1902 Inshore,
2202 Tunnel
Champion
 Back Country 151, 171, 189 & 201 Pro Guide;

Back Country 160 & 161 Phantom;

Back Country 161 & 169 Ghost;

Back Country 2000 Bay 		Bay Champ 200, 22, 220 & 24;

22 Sea Champ;
Chaos
?" Grab Bars 		Chaos 16 Chaos 21 Tarpon Bay
Clearwater
?" Grab Bars 		1800, 1900, 2000 & 2100 Center Consoles,

1900, 2100 & 2400 Baystar
Coastal Bay
?" Grab Bars 		1910, 2110, 2310

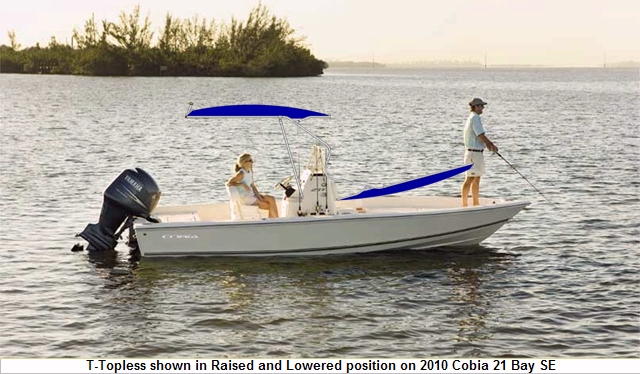

Cobia

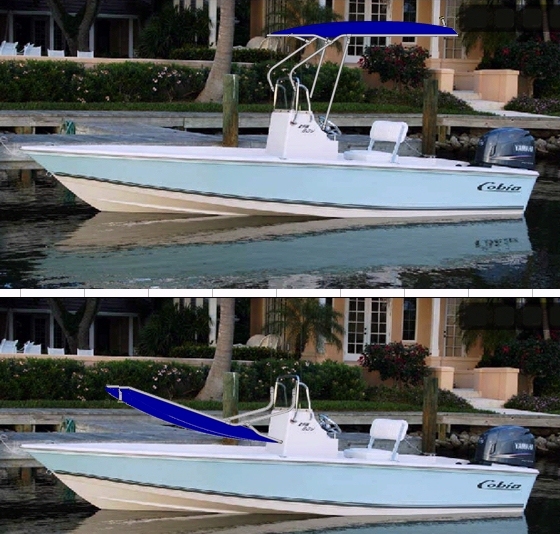

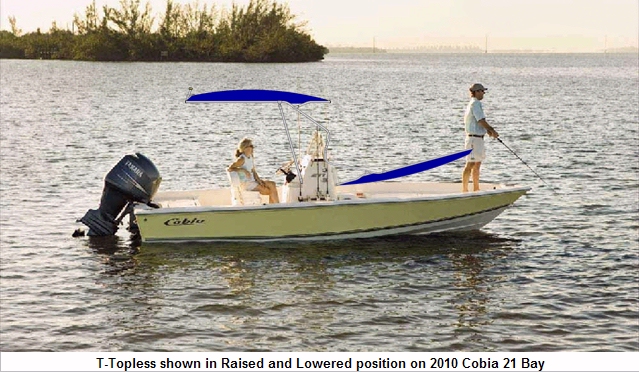

?" Grab Bars 		2007+ 186cc & 19 Bay 21 Bay (verify) 154, 174, 184, 185, 186cc, 194cc, 206cc, 210, 214cc, 216cc, 191 Bay
Coral Bay
?" Grab Bars 		165, 18CC & 19CC.
Cooler must be removed for the Top to fold down on the 15XL.
Dargel Fisherman 186, 210 (won't fold low enough to garage) Skout; 140, 170, 186, 190, 210 & 240 (won't fold low enough to garage) Skooter
Dolphin 20 Bay Boat 16 & 16L Renegade Pro,
16 & 16L Renegade Tiller,
16 Super Skiff,
16L Super Skiff Pro,
16 & 16L Super Skiff Tiller,
17 Super Skiff,
17 Super Skiff Pro,
18 Backcountry Pro
Dragonfly Silver Shadow 17,
Dragonfly 17,
Grand Slam 17,
Emerger 16,
Terapin
Dusky 18 Flats 17R;
17, 19 & 203 Open Fisherman 		17RL, 18R Bay & 19 Bay Shark do not have windshield Grab Rails
Edgewater
1" Grab Bars 		170cc 155cc, 175cc, 205cc 145cc (no grab bars),
185cc & 188cc (overhang)
East Cape
 Lost Men, Caimen, Vantage
Egret
 Egret 16,
Egret 18
Famous Craft
?" Grab Bars 		2300XL Flats 1600SL Flycaster, 1800XL Flats, 2100XL Flats, 2300XL Flats 2100 Center Console,
2200 Coastal Bay
Flatlander
?" Grab Bars 		Desperado 160,
Flatlander 17, 175V, 20V, 21, 24,
Chiquita
Flats Cat®
?" Grab Bars 		Flats Cat 17 (won't fold down) Flats Cat 19 & 21 Flats Cat 21
G3
?" Grab Bars 		Deluxe Center Console models:
1860cc DLX, 1966cc DLX, 1652cc DLX, 1756cc DLX, 1860cc DLX, 1966cc DLX & 2072CC DLX
Glassmaster
?" Grab Bars 		180cc, 206cc 18 Bay, 220cc
Grand Inflatable Boats
?" Grab Bars 		Silverline Cruiser S560L, S560GL, S650 & S650GL
Grady White
1" Grab Bars 		Sportsman 180 Escape 209
Hammer Head
?" Grab Bars 		17 & 21
Haynie
?" Grab Bars 		19 & 20 Flats;
21 Tunnel,
24 		23 Big Foot?
Hell's Bay
 Skate 13,
Devilray 15,
Whipray 16,
Waterman 16 & 18;
Ambush 18,
Professional 17.8,
Marquesa 17,
Guide 18,
Glades Skiff,
Boca Grande 18,
Neptune 19,
Professional, Biscayne,
Cape Sable,
Mosquito Lagoon,
Glades Skiff, Plankton
Hewes
?" Grab Bars 		Redfisher 18 (pre 2007) Redfisher 16, 18, 19, 21 & Tunnel;
Bonefisher 16 & 18;
Tailfisher 17;
Bayfisher 16, 18 & 19;
Light Tackle 18 & 20;
Tournament 16
Hurricane
?" Grab Bars 		FS 193CC,
FS 213CC,
FS 223BB,
FS 233BB 		FS 213DC, Sundecks, Fundecks
Hydra-Sports
1" Grab Bars 		23 Bay 170cc, 18cc, 180cc, 1850cc, 2000cc;
1900 Bay, 20LTS, 1990's 20 Ocean, 202cc;
Lightning 180cc & 212cc;
Bay Bolt 19, 20 & 23;
23 Tunnel 		1980s 1800c &
1750cc (too much overhang)
K2
?" Grab Bars 		Frontier 190 & 210 (with 2 Rear Deck Hinge Fittings),
Blackjack 224
Kenner
1" Grab Bars 		17,
K-18V (2001) 		180, 19, 21 & 24 VX Series;
Tunnel & V Series;
1800, 1900, 1902, & 2102 Vision Series 		2103 Vision Series (too much overhang)
Key Largo
?" Grab Bars 		150 & 174 Flats Boat 160, 176, 180, 196, 206, 236, 168, 186, 210, 216, 1860cc
Key West

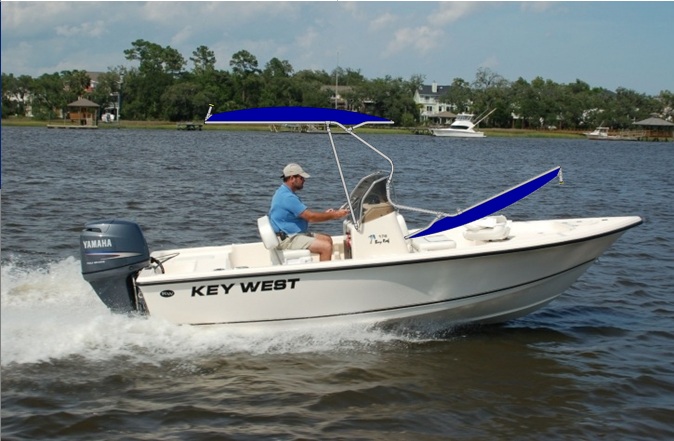

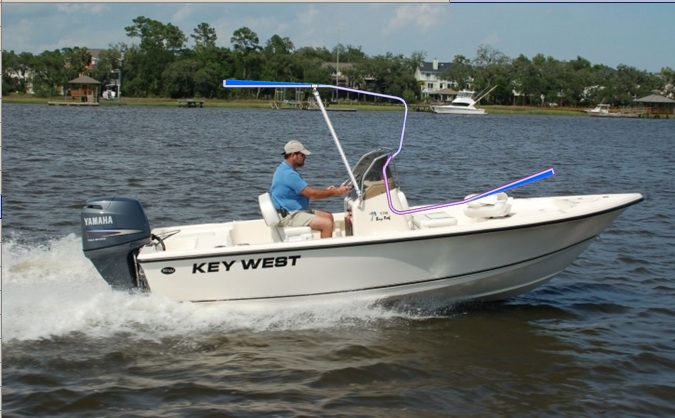

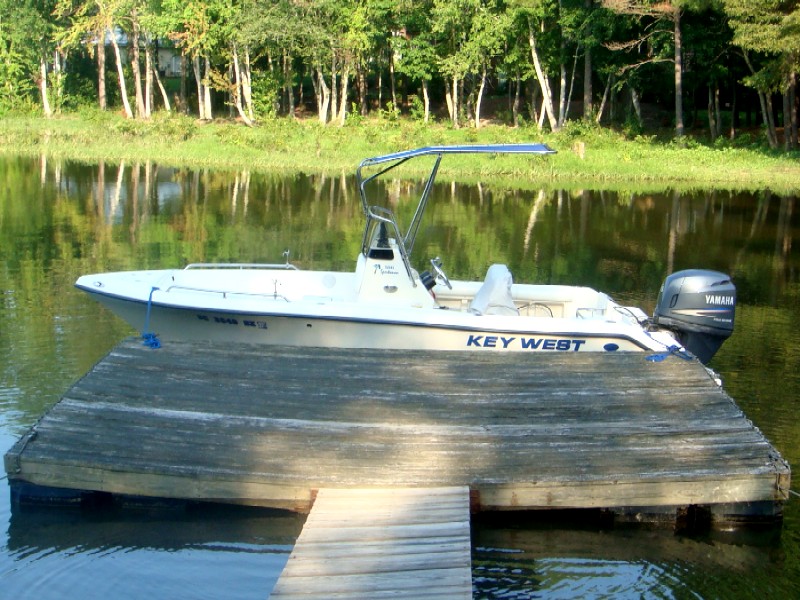

1" grab bars 		176cc 1990s-200x 172cc (verify width) 152cc, 1720 Pro & 1760 Stealth 17cc, 18cc, 1700cc, 1720cc, 186cc, 1900cc, 2020cc, 210cc, 1900 Sportsman, 1920cc & 2020cc Center Consoles;

176br, 186br, 196br & 216br Bay Reefs;

196brth & 216brth Bay Reef Tunnel Hulls
Laguna
?" grab bars (confirm) 		C-180, C-210SC,
B-190, B-210SC
Lake & Bay
No grab bars (confirm) 		Boca Grande 20,
Predator 17'6,
Palm Beach 18,
Back Water 20 		Back Water 22 & Back Water 24 have no grabrails or poling platform.
Leader
(2002 only)
?" grab bars 		180, 200 & 220 Cat
Majek
?" Grab Bars 		Xtreme, Illusion, Redfish Line, 20V Texas Skiff?

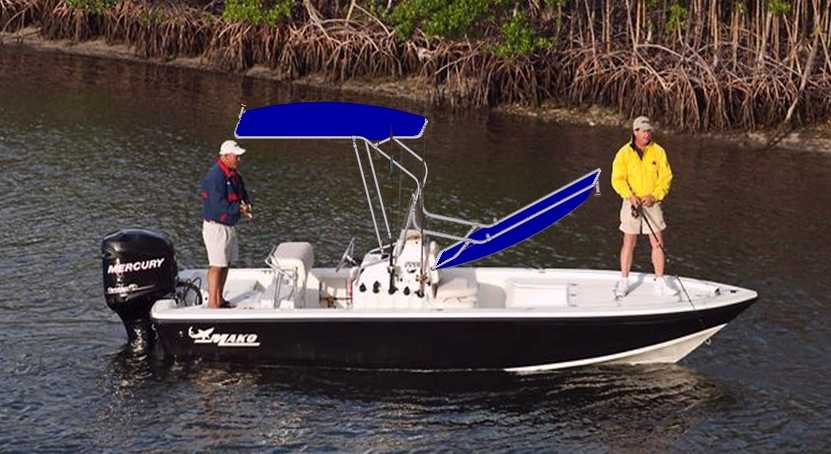

Mako
1" Grab Bars (confirm) 		1701 Inshore (BayShark) 1700;
Silver King 16, Silver Flash & Grande Master 		Inshore Models:

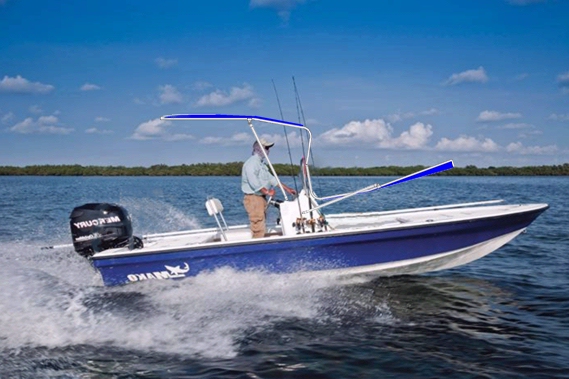

18LTS, 1801, 181, 181ST, 1901,
1901 BayShark, 1901 Tunnel, 191, 191 Tunnel,
2101 BayShark, 211,
211 Tunnel, 2201,
2201 Tunnel, 241,
241 Tunnel;

Offshore Models:
171cc, 184cc, 204cc, 212cc 		Will not fit older Mako's with Aluminum Grab Bars:
171, 181, 191, 192, 201, 204, 211cc
Marshall
 17, 20, 23,
Marshall Flats, Topwater,
Stingray (won't fold down),
Maverick
 17, 18, 21 Master Angler;
Mirage 15 HPX-V,
Mirage 17 HPX-Micro,
Mirage 17-HPX-T,
Mirage 17 HPX-V,
Mirage 18 HPX-V,
Mirage 18 HPX
McKee Craft
?" Grab Rails 		Marathon 172 Classic 16 Center Console,
Waypoint 16 & 17,
Backwater 172cc,
Offshoreman 17, 185 & 20,
Hammerhead 198cc & 220cc,
Offshore Fisherman 17,
Pulse 1700, 18, 18cc, 1800,
Bay Classic 185,
Marathon 184 & 196
Mercury Inflatables
?" Grab Rails 		DR-520 & DR-570 with Raked top,
V-750
Mitzi Skiffs
No Grab Bars 		Mitzi 15, Mitzi 16, Mitzi ST & Mitzi 17
Osprey RIBs
?" Grab Bars 		Sparrowhawk, Eagle, Seaharrier & Seaharrier Max; Viper
Nautica Int'l.
?" Grab Bars 		Widebody 19,
Catamaran 17,
Limited 24 		Widebody 22 & 24,
Deluxe 18 & 22,
Catamaran 20,
Limited 18 & 22,
Express 22 		Stern/Jet 19 Catamaran 24,
Stern/Jet 24
 Widebody 18,
Deluxe 19,
Venture 15 & 16 (too narrow),
Stern-Jet 22
NauticStar
1" Grab Bars 		NauticBay 1800, 1810, 1900, 1910, 2100, 2110 190RG;
1900, 2000 & 2200 Offshore;
2200 & 2400 Tournament
NewWater
?" Grab Bars 		Avocet, Curlew, Stilt Ibis
Nitro Bay
?" Grab Bars 		1800, 1900, 2100, 2200
Novurania
?" Grab Bars 		430DL, 460DL 550DL 530DLX 650DL, ST & TR series (no grab bars)
Palm Beach
7/8" Grab Bars 		1800DL, 1900DL 195 151 & 173 Whitecap 161, 167, 175, 181, 185, 187, 191, 195, 205, 211, 215,
1900 Bay DL, 2000DL
Parker

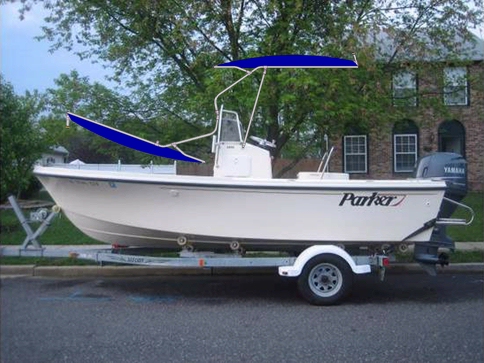

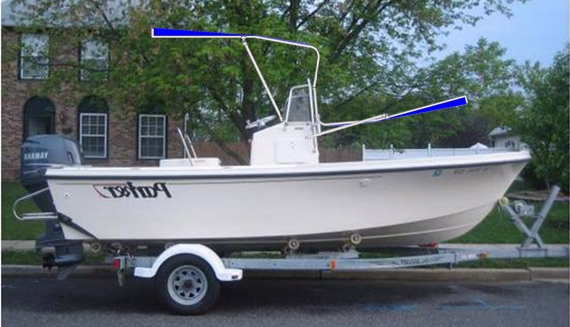

1" Grab Bars 		1801 Center Console 21SE,

confirm:
2100 Center Console,
2100 Big Bay.
2100 Special Edition 		2300 Center Console,
2300 Special Edition 		2300T Big Bay (no grab bars or windshield)
Pathfinder
1" Grab Bars 		2000, 2200, 2400 20V & 2200V Bay Boat Fusion 1900 & 2100 (overhanging grab bar)
Pioneer
1" Grab Bars 		175 Bay Sport,
197 Sport Fish,
220 Bay Sport 		Cape Island (no grab bars)
Polar
?" Grab Bars
1900cc 		17, 1886 & 19 Skiff,

1700cc, 1810cc, 19, 190 & 2100cc Center Console,

1700, 1788, 1810, 2010, 2100 & 2110 Bay,

2110 Angler 		200x Fishmaster 212 (no windshield grab bars),
Tall front cooler seat on some modesl may prevent tilt down.
Polar Kraft
?" Grab Bars 		Sportsman MV 2096 XCC
Polaris Inflatables
?" Grab Bars 		Neptune 19'6" & 24'6"Fiberglass Hull,
Neptune 17'6", 19'6", 21'6" & 24'6" Aluminum Hulls,
any Custom model with windshield grab bars
Pro-Line
?" Grab Bars 		20 Bay 183 Stalker,
183 Bay,
23 Bay 		170, 190,200 & 210 Sportsman,
170cc, 180 Sport Utility, 190cc, 20cc, 2000cc, 21, 21 Sport, 22 Bay 		20 Sport
Pro-Lite
?" Grab Bars 		Pro-Lite 18 & 20 Flats Boats Pro-Lite 17cc Pro-Lite 22 Flats Boats,
Pro-Lite 20cc & 22cc
ProGator
?" Grab Bars 		GatorBay 1900RG, 2100RG, 2110 & 2410
Robalo
?" Grab Bars 		173SF, 18', R1800, 1800cc, 1820cc, 185cc,
19', R190cc, 1990, 1920cc,
R200, 2020cc, 2120, 21' R220cc, 220cc,
Ranger
?" Grab Bars 		2000, 2200, 2300, 2310, 2400 & 2410 Bay Ranger
(factory windshield grab bars fold down) 		173 & 184 Ghost;
167, 191 & 223 Cayman 		Banshee, 168 Phantom, 2250SS (no grab bars)
Release
?" Grab Bars 		Classic 15,
Tarpon Bay 17,
Tarpon Bay 21
Ribcraft
?" Grab Bars 		5.85 & 6.5 Professional;
6.5Al Aluminum;
6.8, 7.0, 7.8 & 9.0 Offshore 		9.0Offshore (low grab bars)
Sailfish
?" Grab Bars 		206cc, 1900bb, 2100bb 216cc
Scout

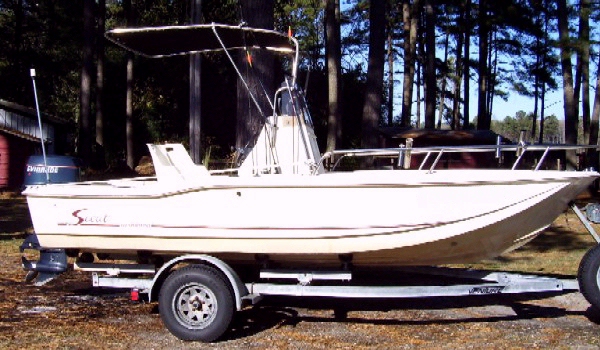

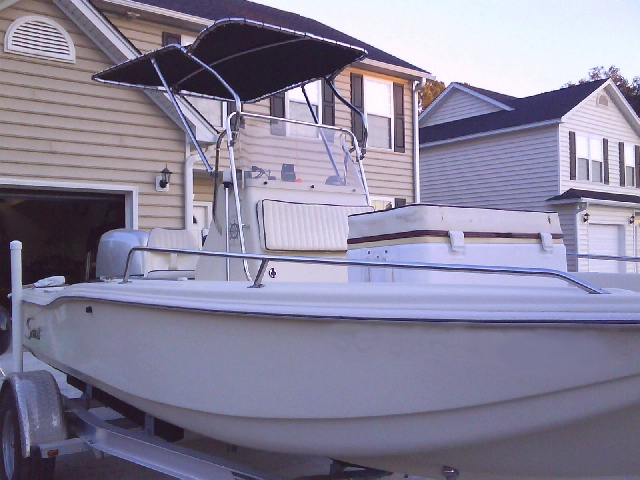

7/8" Grab Bars 		160 172SF &
175SF
Sportfish 		187SF Sportfish;

190BS Bay Scout 		170c & 190c Costa 162, 177, 185 & 205SF Sportfish;

191, 200, 201 & 220 Bay Scout 		220BS Bay Scout & 221 Winyah Bay have overhanging grab bars - Narrow might fit on uprights in front of windshield.
Sea-N-Sport
?" Grab Bars 		17 Flats 160VC Sweet Sixteen,
170 Sportsman,
180 Bay Lite & 180VC
Sea Boss
1"(?) Grab Bars 		170cc 180cc, 190cc,
19 Bay, 21 Bay
Sea Chaser
?" Grab Bars 		160FS, 180FS & 200FS 170BR, 190BR,
210 LX BR, 220BR,
230 LX BR, 1800cc, 1900cc, 2100cc,
170RG, 1800RG, 1950RG, 2100RG,
DLV, DLX, J, JV, CC, BR, and RG series 		160FS, 180FS & 200FS
Sea Fox
1" Grab Bars 		17 160cc & 172cc Center Consoles,

185BF, 195BF, 205BF, 225BF & 245BF Bay Fishers 		197cc 160, 180 & 200 Flats Fox 160, 16CC, 17CC, 19BF, 19CC, 192CC, 21CC, 206CC, 216CC, 23CC Center Consoles,

18BF, 21BF Bay Fishers,

Sport & Pro Series 		2009+ 187CC (curved bars)
Sea Hunt

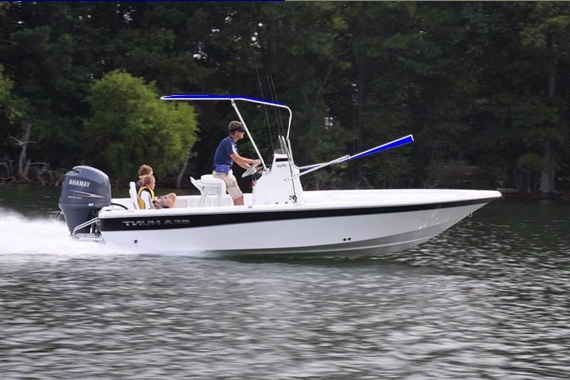

1" Grab Bars 		XP21 Bay,

Skiff 19,
Skiff 21,
Super Skiff 21,
Skiff 21 BR

Triton 177 (Raked) 		Triton 186 (Raked) Pre-2001 Triton 172,
Bay Boat BX19 & BX22 Pro,

These models require the Raked version of the T-Topless or Shadow:
Triton 200,
2001+ Triton 172,
Triton 207(?),
Ultra 186, 196, 210

The overhanging rail and windshield prevent our tops from folding down on these models:
BX21T, Triton 202 & Ultra 210
Skiff 21BR 		Bay Boat BX24 (no grab rails),

Triton 207, 210, 212 & 232
Sea King (KenCraft)
?" Grab Bars 		Sea King 180cc, 190cc & 210cc Sea King 198b, 218b & 238b Bay Boats;

BayRider 1860 & 2060 		Will not fit pre-2007 models with aluminum bars
Sea Pro
1" Grab Bars 		170cc, SV1700, SV1700cc,
180cc
(test boat),
190cc,

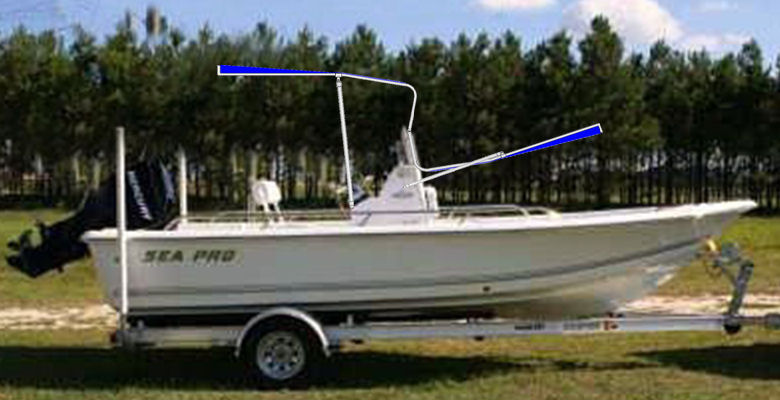

2100, Sv1900, Sv1900cc, SV2100, SV2100cc, SV2300, SV2300cc 		176cc, 186cc, 196cc, 206cc, 21, 210cc,
SV2160 Bay
Sea Quest
?" Grab Bars 		2000 & 2200 Blue Water,
190 & 2100 ProBay
SeaCraft
?" Grab Bars 		SC20, SC21, SC23
SeaRay

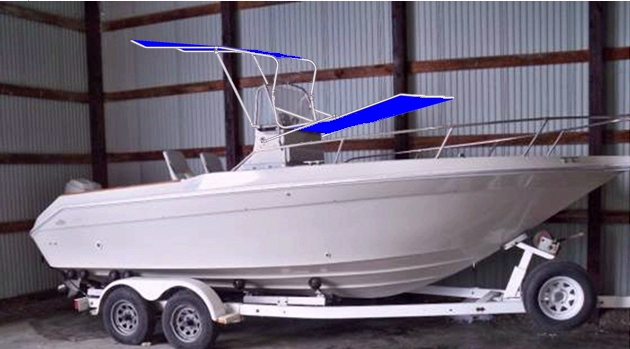

1" Grab Bars 		Laguna 20
Seaswirl
?" Grab Bars 		Striper
1851cc, 21cc, 2101,
19, 1952 & 2152 		22 Bay (Windshield gab bars inside windshield)
Shallow Sport
?" Grab Bars 		18 Sprint;
21 & 24 Sport;
15, 18 & 20 Classic;
18 & 21 Bahia 		18 Sprint;

18 Bahia;
21 Modified V
Shearwater
?" Grab Bars 		X2200 Will not fit Shearwater boats at this time due to windshield grab bar overhang.
Shoalwater
?" Grab Bars 		Cat 14.5, Cat 16, Cat 19,
Cat 21, Cat 23,
Sport 16 Flats, Flats 18,
Stealth 19,
Phoenix 20 (grab bars?)
Legend 22, Legacy 25
Skeeter
1" front windshield grab bars,
7/8" rear/side Grab Bars

ZX20 Bay
Bay Boat Series:
ZX22 Bay T,
ZX22 Bay, ZX2250,
ZX22 V & ZX24 V
Steiger Craft
?" Grab Bars 		Shadow Raked should fit 21 Super Fly, 21 Long Beach, 21 Deep Vee Long Beach & 23 Long Beach T-Topless will NOT fit 21 Super Fly, 21 Long Beach, 21 Deep Vee Long Beach & 23 Long Beach
Sterling
?" Grab Bars 		TR7, 180TS, 200XS, 220XS 200XS. 220XS
Stinger
?" Grab Bars 		160cc 144SC, 160SC
Stott
?" Grab Bars 		1720, 1960 & 2160 Bay;
1780 and 1796 Skiff
Stratos
1" Grab Bars 		1870cc ?
Stumpnocker
?" Grab Bars 		1600-cc, 175-cc, 1750-S 176 & 185-cc (no grab bars),
225-cc (too much grab bar overhang);
174 & 1800Flats
Sundance
?" Grab Bars 		K16CC, K16FLX, K16T,
F17CC, F17CCR, F17FLX, F19CC, F19CCR, F19CCL, F19FLX,
SV171, SV171BAY, SV186 		FX17 Flicker, B18CC, B18CCR, B20CC, B20CCR, B22CC, B22CCR,
SV201BAY, SV205, SV205BAY, SV23
Terrapin Skiffs
 Dragonfly
Tidewater
?" Grab Bars 		1784, 1984, 1996 & 2196 Skiff,
180cc Adventure 		1800BM Bay Max 216cc Adventure,

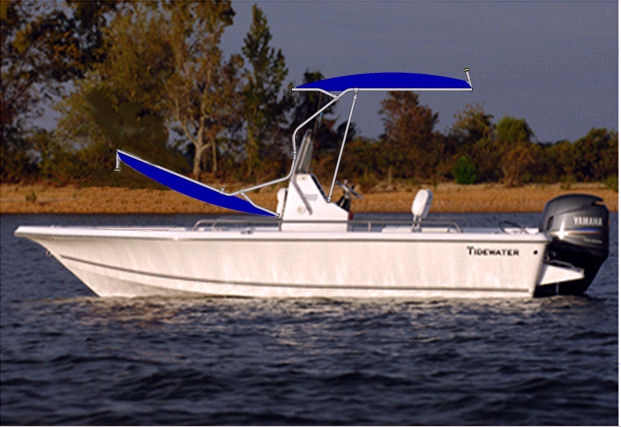

1900BM BayMax,

196cc & 2100BM (won't fold down) 		2007-2008 2100 BayMax,
2400BM (no grab bars),
Todd USA Steering Consoles
?" Grab Bars 		2010 Helmsman Console w/ Windshield & Grabrail Model Number: 93-3003WG Todd has produced several models of steering consoles. Please check your console's grab bar dimensions.
Tornado RIBs
?" grab bars 		7.8M, VSR 9m PRO (raked)
Triton
7/8" Grab Bars (confirm for your model) 		190LTS, 22LTS, 220LTS,
220LTS Pro 		195cc 240LTS,
225cc,
196 & 218 Bay Explorer 		171, 191LTS, 22LTS & 24LTS (no grab bars)
Triumph
7/8" grab bars
1" seat bars 		190cc,
2007 150cc & 170cc (30" wide) 		2008+ 150cc & 170cc (32" wide),

190 Bay,
1700 Skiff 		195cc, 215cc 210 Logic & 2100cc (grabbars aligned with windshield)
Trophy
1" Grab Bars 		1703cc & 1903cc Center Consoles,

1901 & 2101 Bay 		181 & 2401 Bay;

1901 Bay Pro,

183, 1900cc & 2103cc Center Consoles 		163 Center Console (won't fold down due to low grab bar)
Valiant RIBs
?" Grab Bars 		750 Cruiser, 750 Sport
Velocity
 F-20 Bullet
VIP
?" Grab Bars 		Bluewater 186ccf & 196ccf;

BayStealth Liner & Skiffs
Wahoo
1" Grab Bars 		1860 EFS F-1600EFS, 1650CC, 1750CC, 1750 Offshore,
F-1800EFS, 18.5 Offshore,
18.5 Sportfish, 1850cc,
19cc, 1900, 1900CC,
F-2000efs, 2050 EFS,
2100 Offshore, 2100 Sportfish,
2100CC, 2150CC, 2400CC,
2300 Sportfish, 2400EFS
War Eagle
?" Grab Bars 		2072, 2372 Most War Eagle models do not have windshield grab rails.
Coastal Tomahawk 19T and 21T boats have large diameter alumin grab rails.
Wellcraft
?" Grab Bars 		18 Fisherman 210ccf, 20 Fish,
200, 202, 210 & 212 Fisherman;

215 Bay 		v20 has sharp overhainging bars;
195 & 215 Bay does not have windshield grab bars;
Stabilizer bar will hit windshild on 190ccf & 2000+ 180 and 210 Fisherman
Xpress
?" Grab Bars 		HD20B, HD22B, X21B & X24B Bay;

HD18CCF, HD20CCF, HD22CCF
Yellowfin
?" Grab Bars 		17 Skiff
Zeppelin RIBs
?" Grab Bars 		V-Pro 16, 18 & 22
Zodiac Marine
?" Grab Bars 		Medline IIC,

Pro Open 550 		Pro Open 650,

Yachtline Deluxe 530 DL 		Medline II,

Pro 20 Man,

Pro Open 850 		Pro III 12 Man;

Medline III & IV;

Yachtline 480 Deluxe;

Pro 15 Man;

Hurricane F170, 190 & 24;

Eclipse 17, 570 & 19
Shadow fits 29 to 37 inch wide grab bars:
Vertical for Grab-Bars with less than 10 degrees rake,
Raked for Grab-Bars with 10 to 65 degress rake<. 		Flats-Top (coming in 2010!)

Mounts under the front of the poling platform on flats boats.

The Shadow, T-Topless and Montauk-T-Topless are not designed or approved for mounting on Aluminum Grab Rails. RNR Marine, Inc. considers this an unsafe installation, and will not warrant or be held liable for any damages should the top be mounted on aluminum grab bars!


T-Topless | Montauk-T-Topless | Shadow | Flats-Top | Models | FAQs | $avings | Why Stainless? | Competition | Colors | Garage Tips | Gallery | Videos | Buy | Privacy | Sitemap

RNR-Marine's Unique Products for Demanding Boaters: T-Topless, Shadow, Montauk-T-Topless and Flats-Top Home About History Patented Patent Pending Universal Garage Lower Fold Folding TTop T-Top T_Top TTop T-Tops Tops T Top Tops T-Topless "T-Topless" T Topless TTopless Topless Shadow The Shadow TheShadow The-Shadow ShadowTop Shadow-Top The-Shadow-Top Manufacturer of the T-Topless Folding T-Top English Fabricante de la T-Tapa plegable T-Con las tetas al aire Spanish Fabricant du T-Dessus se pliant de T-Torse nu French Hersteller der T-Toplessen faltenden T-Oberseite German Fornitore della T-Parte superiore piegante T-Topless Italian Fabrikant van de T-Topless Vouwende t-Bovenkant Dutch Fabricante da T-Parte superior de dobramento T-Em topless Portugese Tee Top Tee-Top TeeTop T Rotate Rotating Installs in Minutes Lowers in Seconds Lower Remove Removable Drop your Top Drop Top Go T-Topless Boat Center Console Flats Boat Boats Bimini Skiff Skiffs Garage Bridge Easy Install Fishmaster Fishmasters www.Fishmaster.com www.Fishmasters.com BimiTee bimitee.com www.bimitee.com Bimini-T Bimini-T.com www.Bimini-T.com Purchase Buy Montauk-T-Topless "Montauk-T-Topless" Montauk_T-Topless "Montauk_T-Topless" TeeTopless Flats-Top Montauk Dauntless Newport Striper Center Centre Console Boat Folding Fold Rotating Rotate Lower Remove Removable Universal Five 5 Sizes Quick Release Pin 304 304L Stainless Tubing 316 Stainless Cast Fittings Tubing NC CNC Ercolina Bender Bending NC Swagelok Orbital TIG Welded Polished Buffed Buff Polish Shiny Electropolish Electropolished Stainless Steel No Aluminum Pipe Alum Sunbrella Marine Canvas Not Titanium Resists Salt Water Saltwater Pitting Resistant Tolerant Secure Thieves Vandals Vandalism Buy Sell New Used Dealer Manufacturer Manifacturere After market Aftermarket Kit Windshield Raked Vertical Grab Bar Bars Grabbar Grab-Bar Grabbars Grab-Bars Nav Lite Light Navigation Light Rod Holder Holders Rocket Launcher Launchers Poling Casting Platform Flats Flat Boat FlatsBoat Flats-Boat Rigid Inflatable Boat RIB AB Inflatables Avon Inflatables Bombards Inflatables RIBs Caribe Inflatables Grand Inflatables Mercury Inflatables Osprey RIBs Nautica International Novurania Polaris Inflatables Tornado RIBs Valiant RIBs Zeppelin RIBs Zodiac Marine USA Boat Radar Arches iboats.com marineretrofit.com Pro-Line Custom Aluminum and Canvas prolinealum.com boattowers.com Fishmaster Atlantic Towers BimiTee bimiteetop.com Taylor Made Shade C. E. Smith CE Smith Dart Actionweld Ace Welding AceWelds.com edsmarinesuperstore.com boatersworld.com jeanscanvas.com floridattops.com S&S Marine s-smarine.com saltwatersportsman.com birdsallmarine.com EMC Towers emctowers.com Clearwater Canvas allmarinecanvas.com Taco Neptune Cabelas Cabela's Marine Retrofit marineretrofit.com West Marine westmarine.com yachtsofstuff.com Overtons Ocean Tops oceantops.com Pipewelders Great Lakes greatlakesboattop.com US Pipes U.S. Pipes Extender t-topextender.com boatcoversdirect.com marinewaypoints.com Baywatch Towers baywatchtowers.com Accurate Towers accuratetowers.com boatingstore.com texaswaketower.com Kwik Tek T Bag Scotties Mantis Portable canvascountry.com Island Towers islandtowers.com Pacific Yacht Towers pacificyachttowers.com Fabricator Fabricators Covermate Imperial T-Top seamar.com Trampoline T-Top ryderracks.com T and W Design Marine Custom Aluminum Fabrication twdesignmarine.com Fastech Marine Fabricating hotfrog.com/Products/T-Tops Redman Marine Fabricators redmanmarinefabricators.com Hot Tops HotTopsMarine.com Quality QualityTops.com Boat Towers BoatTowers.com t-topsetc.com t-tops.com Superior Towers superiortowers.net shermanmarine.com Allen Lucas Marin allenlucasmarine.com T-Top Boat Covers ttopcovers.com tntboatworks.com Topless Models Topless Babes Topless Chicks Allmand Action Craft ActionCraft American Skiff Angler Aquasport Bay Craft BayCraft Bay Stealth BayStealth Blue Fin BlueFin Blue Wave BlueWave Dory Blue Water Bluewater Bay Bolt BayBolt Back Country Back Country Boston Whaler Montauk Mantauk monauak Mantuak montak montuk 17 170 190 Dauntless duantless duntless 180 Outrage Canyon Bay CanyonBay Cape Craft CapeCraft Cape Horn Carolina Skiff Caroline Skiff C.E. Smith CE Smith CESmith C.E.Smith Century Chaos Champion Clearwater Coastal Bay Cobia Coral Bay CoralBay Dusky Dargel Edgewater Egret Famous Craft FamousCraft Flatlander G3 Glassmaster Grady White GradyWhite Mmer Head HammerHead Haynie Hells Bay Hell's Bay HellsBay Hewes Redfisher Hurricane Hydrasports Hydra-Sports Hydra Sports K2 Kenner Key Largo KeyLargo Key West KeyWest Laguna Lake Bay Lake & Bay Flats Bay Leader Majek Mako Maverick Mirage McKee Mitzi Nauticstar Nautic Star Nitro Nitro Bay Palm Beach PalmBeach Parker Pathfinder Pioneer Polar Polar Kraft PolarKraft Pro Line ProLine Pro Lite ProLite ProGator Pure Bay PureBay Ranger Release Robalo Sailfish Sail Fish Scout Sea-N-Sport SeaNSport Sea N Sport Sea Boss SeaBoss Sea Chaser SeaChaser Sea Fox SeaFox Sea Hunt SeaHunt Sea King SeaKing Sea Pro SeaPro Sea Quest SeaQuest Sea Ray SeaRay Sea Swirl SeaSwirl Shearwater Shoalwater Skeeter Steiger Craft SteigerCraft Sterling Stratos Stumpnocker Sundance Tidewater Triton Triumph Trophy Velocity Bullet VIP Wahoo War Eagle WarEagle Wellcraft Xpress Express YellowFin 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 Redfish Drum Blackdrum Trout Mahi Dolphin Dorado Marlin Sailfish Tarpon Striper Bluefish Wahoo Spanish King Mackeral Bass Barracuda Jack Crevalle Tuna Bluefin Yellowfin Blackfin bb cc xl bs xs 15 15cc 15xl 150 150cc 150xl 1500 1502 1500cc 1500xl 155 155cc 155xl 1550 1550cc 1550xl 16 16cc 16xl 160 160cc 160xl 1600 1602 1600cc 1600xl 165 165cc 165xl 1650 1650cc 1650xl 17 17cc 17xl 170 170cc 170xl 1700 1702 1700cc 1700xl 175 175cc 175xl 1750 1750cc 1750xl 18 18cc 18xl 180 180cc 180xl 1800 1802 1800cc 1800xl 185 185cc 185xl 1850 1850cc 1850xl 19 19cc 19xl 190 190cc 190xl 1900 1902 1900cc 1900xl 195 195cc 195xl 1950 1950cc 1950xl 20 20cc 20xl 200 200cc 200xl 2000 2002 2000cc 2000xl 205 205cc 205xl 2050 2050cc 2050xl 21 21cc 21xl 210 210cc 210xl 2100 2102 2100cc 2100xl 215 215cc 215xl 2150 2150cc 2150xl North South East West NorthEast SouthEast SouthWest NorthWest Great Lakes Harbor Bay Coastline Tideline Beach Inlet Skinny Water Flats Miami Tampa Charleston Keys Key Largo Largo Houston Atlanta Wilmington Jacksonville Annapolis Newport Fort Lauderdale Aransas Pass ALABAMA AL ARIZONA AZ ARKANSAS AR CALIFORNIA CA COLORADO CO CONNECTICUT CT DELAWARE DE DISTRICT OF COLUMBIA DC FLORIDA FL GEORGIA GA IDAHO ID ILLINOIS IL INDIANA IN IOWA IA KANSAS KS KENTUCKY KY LOUISIANA LA MAINE ME MARYLAND MD MASSACHUSETTS MA MICHIGAN MI MINNESOTA MN MISSISSIPPI MS MISSOURI MO MONTANA MT NEBRASKA NE NEVADA NV NEW HAMPSHIRE NH NEW JERSEY NJ NEW MEXICO NM NEW YORK NY NORTH CAROLINA NC NORTH DAKOTA ND OHIO OH OKLAHOMA OK OREGON OR PENNSYLVANIA PA RHODE ISLAND RI SOUTH CAROLINA SC SOUTH DAKOTA SD TENNESSEE TN TEXAS TX UTAH UT VERMONT VT VIRGINIA VA WASHINGTON WA WEST VIRGINIA WV WISCONSIN WI WYOMING WY
