$849

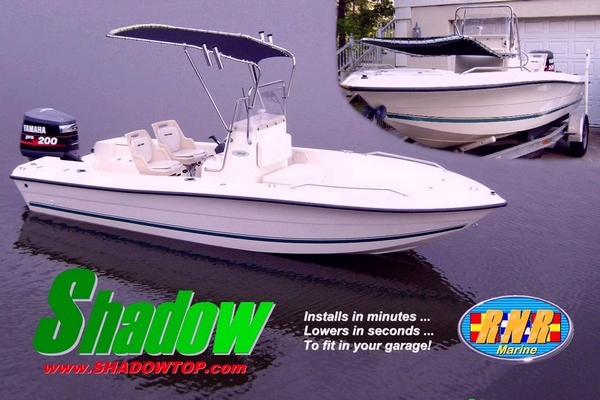

The entry level T-Topless™ Shadow™ kit
for those who don't need a built-in navigation light.
American made, polished Stainless and Sunbrella® canvas!
The
Kit
Specifications

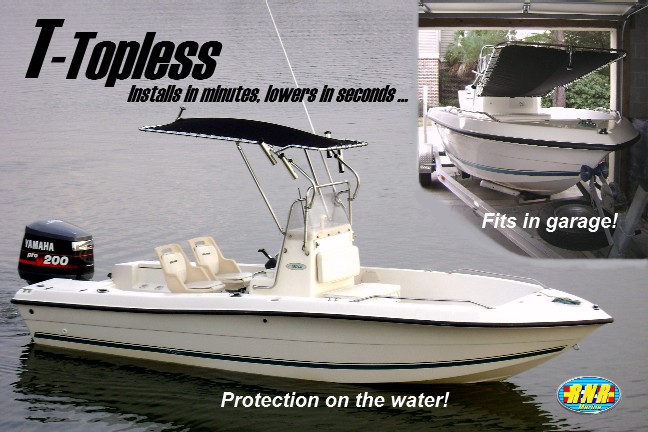

The T-Topless Shadow™ model is a
kit version of the T-Topless™ providing a great value for those
"Do-It-Yourselfers" who like to put things together themselves
(and don't need a built-in navigation light).
Like the T-Topless, the Shadow™ kit is a 1"OD stainless frame folding top
with welded fittings
which assembles and installs in about an hour,
provides refreshing shade and raises, lowers or removes in seconds
to fit in a garage or under a boat cover.
In order to fit most center console boats and RIB rail configurations,
this universal kit is available in:
- 5 different height/rake configurations,
- 3 different rear leg lengths,
- 2 front mounts (7/8" or 1") sizes,
- 3 rear mounts (7/8", 1" or deck mount) options,
Detailed Specifications:
- Models: To fit Grab Rail widths from 27" to 37" inches.
- Std. Height Vertical for Tall Grab Rails with
-5° to 25° rake,
- Std. Height Raked Back for Tall Grab Rails
raked -5° to -45° backwards,
- Tall Vertical for Short Grab Rails with
-5° to 25° rake,
- Tall Raked Back for Tall Grab Rails
raked -5° to -45° backwards,
- Tall Raked Forward (Montauk) for Montauk®-17 & other Short Grab Rails
raked 25° to 65° forwards. This model include a spreader bar to keep the front
of the top spread apart to clear the console when lowered.
- Frame: Numerical Control (NC) formed AISI type 304L polished stainless steel tubing,
TIG welded to type 316 surgical stainless fittings.
Optional stabilizer bar can be mounted in either port or starboard helm configuration.
-
Canvas: Black (upgrade to any Sunbrella® color)
Sunbrella® 9.25-oz. acrylic marine canvas
with color-matched Nylon webbing sewn around the perimeter
and nickel plated grommets.
Supplied with black, braided Nylon Lacing Cord.
Sunbrella® has an
Ultraviolet Protection Factor (UPF) of over 50 (considered the ultimate in UV sun protection)
and has received the
Skin Cancer Foundation's Seal of Recommendation.
- Size: 5'6" long X 52" wide rear X 37" wide front = 21 sq.ft coverage.
- Fits: 7/8" & 1" diameter stainless steel windshield grab bars from 27" to 37" wide, and over 42" tall.
- Height:
- Standard, Standard-Raked-Fwd & Standard-Raked-Back: 21" above front windshield grab-rail,
typically providing 6'2" to 6'5" clearance,
- Montauk-Shadow™ & Tall-Raked-Fwd: 25" above front windshield grab-rail,
providing 6'3" to 6'6" of clearance on Montauk® 17,
- Tall & Tall-Raked-Back: 27" above front windshield grab-rail,
typically providing 6'2" to 6'8" clearance.
- Weight: 19.0 pounds, 22.0 pounds for Tall-Rake-Fwd(Montauk)
- Assembly: Assemble Port-Frame to Starboard-Frame with Rear-Cross-Bar and connect Stabilizer (10 mins).
- Installation: Lace canvas (20-30 mins) and attach top to windshield grab rails (30-45 mins).
- Maintenance & Cleaning: Routine Inspections, Scheduled Maintenance and Cleaning.
- Options:
Stabilizer,
Gear Loft,
Rod Holders,

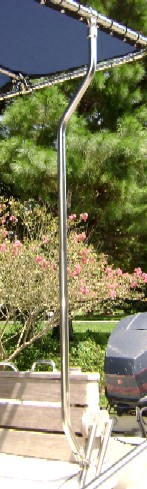

54-inch Triple-Bend Legs,
Spoiler,
any Sunbrella® Marine Fabric color,
- Price:
- Shadow™:
$849
plus shipping,
- Montauk-Shadow™ (with 52" Legs & Spreader):
$899
plus shipping.
All top frame sizes in stock, ready to ship!
|
...
$899

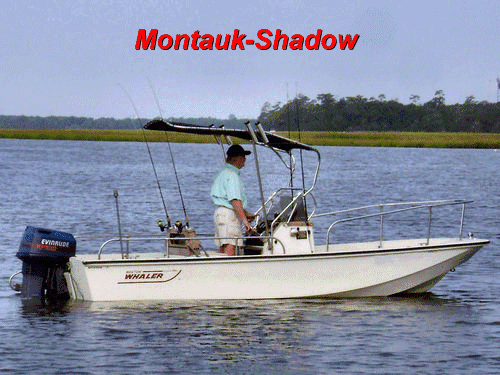

The entry level, American made T-Topless™ Montauk-Shadow™ kit
for the Boaton Whaler® Montauk™ 17 is the do-it-yourself version of the
popular Montauk-T-Topless™,
made of polished Stainless and Sunbrella® canvas!
The
Kit
Specifications
The T-Topless Shadow™ model is a
kit version of the T-Topless™ providing a great value for those
"Do-It-Yourselfers" who like to put things together themselves
(and don't need a built-in navigation light).
Like the T-Topless, the Shadow™ kit is a 1"OD stainless frame folding top
with welded fittings
which assembles and installs in about an hour,
provides refreshing shade and raises, lowers or removes in seconds
to fit in a garage or under a boat cover.
In order to fit most center console boats and RIB rail configurations,
this universal kit is available in:
- 5 different height/rake configurations,
- 3 different rear leg lengths,
- 2 front mounts (7/8" or 1") sizes,
- 3 rear mounts (7/8", 1" or deck mount) options,
Detailed Specifications:
- Models: To fit Grab Rail widths from 27" to 37" inches.
- Std. Height Vertical for Tall Grab Rails with
-5° to 25° rake,
- Std. Height Raked Back for Tall Grab Rails
raked -5° to -45° backwards,
- Tall Vertical for Short Grab Rails with
-5° to 25° rake,
- Tall Raked Back for Tall Grab Rails
raked -5° to -45° backwards,
- Tall Raked Forward (Montauk) for Montauk®-17 & other Short Grab Rails
raked 25° to 65° forwards. This model include a spreader bar to keep the front
of the top spread apart to clear the console when lowered.
- Frame: Numerical Control (NC) formed AISI type 304L polished stainless steel tubing,
TIG welded to type 316 surgical stainless fittings.
Optional stabilizer bar can be mounted in either port or starboard helm configuration.
-
Canvas: Black (upgrade to any Sunbrella® color)
Sunbrella® 9.25-oz. acrylic marine canvas
with color-matched Nylon webbing sewn around the perimeter
and nickel plated grommets.
Supplied with black, braided Nylon Lacing Cord.
Sunbrella® has an
Ultraviolet Protection Factor (UPF) of over 50 (considered the ultimate in UV sun protection)
and has received the
Skin Cancer Foundation's Seal of Recommendation.
- Size: 5'6" long X 52" wide rear X 37" wide front = 21 sq.ft coverage.
- Fits: 7/8" & 1" diameter stainless steel windshield grab bars from 27" to 37" wide, and over 42" tall.
- Height:
- Standard, Standard-Raked-Fwd & Standard-Raked-Back: 21" above front windshield grab-rail,
typically providing 6'2" to 6'5" clearance,
- Montauk-Shadow™ & Tall-Raked-Fwd: 25" above front windshield grab-rail,
providing 6'3" to 6'6" of clearance on Montauk® 17,
- Tall & Tall-Raked-Back: 27" above front windshield grab-rail,
typically providing 6'2" to 6'8" clearance.
- Weight: 19.0 pounds, 22.0 pounds for Tall-Rake-Fwd(Montauk)
- Assembly: Assemble Port-Frame to Starboard-Frame with Rear-Cross-Bar and connect Stabilizer (10 mins).
- Installation: Lace canvas (20-30 mins) and attach top to windshield grab rails (30-45 mins).
- Maintenance & Cleaning: Routine Inspections, Scheduled Maintenance and Cleaning.
- Options:
Stabilizer,
Gear Loft,
Rod Holders,
54-inch Triple-Bend Legs,
Spoiler,
any Sunbrella® Marine Fabric color,
- Price:
- Shadow™:
$849
plus shipping,
- Montauk-Shadow™ (with 52" Legs & Spreader):
$899
plus shipping.
|
All top frame sizes in stock, ready to ship!
|

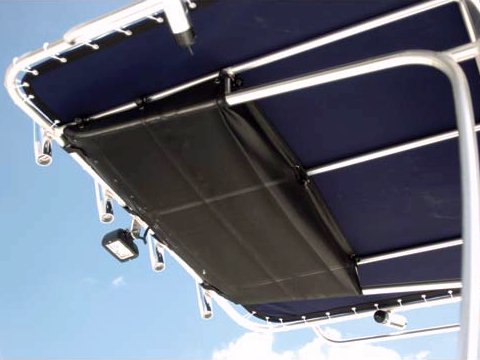

- Custom fit PhiferTex® open-weave Gear Loft, Black
- Braided Nylon Lacing Cord, Black
- US48 Shipping and Handling, Free with Top or $25
- Plus SC Local Sales Tax *
(click for larger view)
|
- Sunbrella® 9.25oz fabric & Nickel Plated Grommets,
- Can ONLY be ordered along with a Shadow Top order in progress,
- Ships Free with Shadow Top,
- Plus SC Local Sales Tax *
|
- Stainless Steel Tubing,
- Custom Bent to Fit Specific Boat Model,
- US48 Shipping and Handling, Free with Top or $25
- Plus SC Local Sales Tax *
(click for larger view)
|
|
Semi-Custom Model
...
$1,589
The top-of-the-line, fully welded T-Topless™ model in custom widths.
White navigation light with wiring hidden inside tubing.
Fully assembled (including Sunbrella® canvas laced to frame) and ready to install!
Specifications
T-Topless™
is a sturdy, folding, welded, semi-custom (many sizes & variations) stainless steel T-Top
which installs in an hour
and raises, lowers or removes in seconds allowing the owner to keep their center console boat
in a garage, boat house or under a boat cover or their rigid inflatable boat (RIB) in a yacht bay.
Nine size combinations, an integrated navigation light and availability in any Sunbrella® canvas color produce a custom look and feel.
- Models: Skinny, Narrow, Medium, Wide or Montauk to fit from 23" to 39" wide Grab Rails.
A
Raked Forward version is available in each width for boats having grab bars that are
angled more than 25 degrees forward (25° to 65°) from vertical.
A
Raked Back version is available for grab bars that are
angled more than 5 degrees back (-5° to -45°) from vertical.
Each top's width and stabilizer bar are factory adjusted to custom fit the boat's configuration prior to shipping.
- Frame: Formed from a single 20-foot piece of 1"OD x 16-gauge (.065") wall,
polished AISI type 304L stainless steel tubing,
using an Ercolina® Numerical Control (NC) bender and
TIG welded with Swagelok® NC orbital welder
to type 316 surgical stainless steel fittings with
forward facing "Visor" and center "Top Bow" bar for improved shape and rigidity.
All components factory assembled and welded (unlike other makes).
Stabilizer bar mounted for port or starboard helm configuration.
- Light:
USCG approved Perko® all-around, 2nm Nav-Lite (Perko® 0338DP2CLR bulb)
above canvas to avoid glare,
with
Ancor® marine-grade 14AWG tinned copper, jacketed wiring
hidden inside frame.
Connects via
Ancor® marine-grade male & female splash-proof snap plug connectors (adhesive-lined, heat-shrunk)
to 36" instrument panel connection leads.
A
SeaChoice® USCG approved, 6-LED, 360°, 2nm light
is offered as an optional upgrade.
-
Canvas: Several standard Sunbrella®colors (or
special order any Sunbrella® color at no extra cost)
Sunbrella® 9.25-oz. acrylic marine canvas
with color-matched Nylon webbing sewn around the perimeter
and nickel plated grommets.
Factory laced to frame with black braided Nylon Lacing Cord.
Sunbrella® has an
Ultraviolet Protection Factor (UPF) of over 50 (considered the ultimate in UV sun protection)
and has received the
Skin Cancer Foundation's Seal of Recommendation.
- Size: 6' long X 52" wide rear X 40" wide front = 23 sq.ft coverage,
models fit windshield grab bars from 23 to 39 inch width.
- Height:
- T-Topless™: 20 to 21" above front windshield grab-rail (24" above mount),
typically providing 6'2" to 6'5" clearance
- Montauk-T-Topless™: 24" above front windshield grab-rail,
providing 6'1" side and 6'6" interior head-room.
- Weight: 28 pounds.
- Assembly: No assembly required! Factory Assembled and Laced.
- Installation: Attach top to windshield grab rails (30-45 mins) and connect wiring (15-45 mins).
- Maintenance & Cleaning: Routine Inspections, Scheduled Maintenance and Cleaning.
- Options:
SeaChoice® LED Light,
Rod Holders,
Gear Loft,
54-inch Triple-Bend Legs,
any Sunbrella® color canvas,

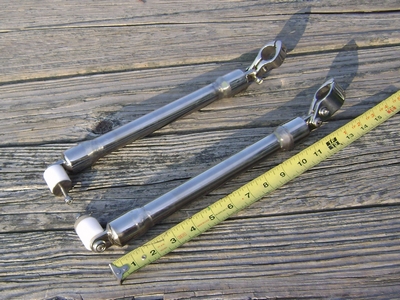

Montauk® 17/170 Grab Rail Supports,
Raked Versions,
Spray-Shield,
Spray-Shield & Gull-Wings,
Montauk® Spray-Shield,
Montuak® Spray-Shield & Gull-Wings.
- Price:
- T-Topless™:
$1,589
plus shipping,
- Montauk-T-Topless™:
$1,639
plus shipping.
All top frame sizes in stock, ready to ship!
|
...
$1,639

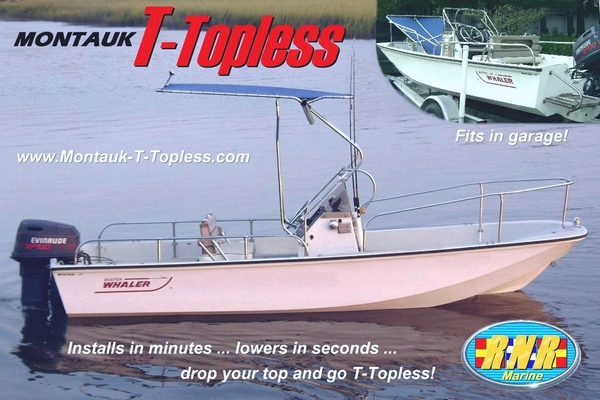

The top-of-the-line, fully welded Montauk-T-Topless™ custom fit to fit the Boston Whaler® Montauk®.
Sits further back and taller to clear the front, console-mounted rod holder.
White navigation light with wiring hidden inside tubing.
Fully assembled (including Sunbrella® canvas laced to frame) and ready to install!
- Complete, fully assembled Montauk-T-Topless with Sunbrella® canvas factory laced to frame,
- Fits Boston Whaler® Montauk 17, 170 & 19, Dauntless 18 & 180, Newport 17 and Striper 17,
- Includes 52" Straight Rear Legs for Spray-Shield attachment.
Specifications
T-Topless™
is a sturdy, folding, welded, semi-custom (many sizes & variations) stainless steel T-Top
which installs in an hour
and raises, lowers or removes in seconds allowing the owner to keep their center console boat
in a garage, boat house or under a boat cover or their rigid inflatable boat (RIB) in a yacht bay.
Nine size combinations, an integrated navigation light and availability in any Sunbrella® canvas color produce a custom look and feel.
- Models: Skinny, Narrow, Medium, Wide or Montauk to fit from 23" to 39" wide Grab Rails.
A
Raked Forward version is available in each width for boats having grab bars that are
angled more than 25 degrees forward (25° to 65°) from vertical.
A
Raked Back version is available for grab bars that are
angled more than 5 degrees back (-5° to -45°) from vertical.
Each top's width and stabilizer bar are factory adjusted to custom fit the boat's configuration prior to shipping.
- Frame: Formed from a single 20-foot piece of 1"OD x 16-gauge (.065") wall,
polished AISI type 304L stainless steel tubing,
using an Ercolina® Numerical Control (NC) bender and
TIG welded with Swagelok® NC orbital welder
to type 316 surgical stainless steel fittings with
forward facing "Visor" and center "Top Bow" bar for improved shape and rigidity.
All components factory assembled and welded (unlike other makes).
Stabilizer bar mounted for port or starboard helm configuration.
- Light:
USCG approved Perko® all-around, 2nm Nav-Lite (Perko® 0338DP2CLR bulb)
above canvas to avoid glare,
with
Ancor® marine-grade 14AWG tinned copper, jacketed wiring
hidden inside frame.
Connects via
Ancor® marine-grade male & female splash-proof snap plug connectors (adhesive-lined, heat-shrunk)
to 36" instrument panel connection leads.
A
SeaChoice® USCG approved, 6-LED, 360°, 2nm light
is offered as an optional upgrade.
-
Canvas: Several standard Sunbrella®colors (or
special order any Sunbrella® color at no extra cost)
Sunbrella® 9.25-oz. acrylic marine canvas
with color-matched Nylon webbing sewn around the perimeter
and nickel plated grommets.
Factory laced to frame with black braided Nylon Lacing Cord.
Sunbrella® has an
Ultraviolet Protection Factor (UPF) of over 50 (considered the ultimate in UV sun protection)
and has received the
Skin Cancer Foundation's Seal of Recommendation.
- Size: 6' long X 52" wide rear X 40" wide front = 23 sq.ft coverage,
models fit windshield grab bars from 23 to 39 inch width.
- Height:
- T-Topless™: 20 to 21" above front windshield grab-rail (24" above mount),
typically providing 6'2" to 6'5" clearance
- Montauk-T-Topless™: 24" above front windshield grab-rail,
providing 6'1" side and 6'6" interior head-room.
- Weight: 28 pounds.
- Assembly: No assembly required! Factory Assembled and Laced.
- Installation: Attach top to windshield grab rails (30-45 mins) and connect wiring (15-45 mins).
- Maintenance & Cleaning: Routine Inspections, Scheduled Maintenance and Cleaning.
- Options:
SeaChoice® LED Light,
Rod Holders,
Gear Loft,
54-inch Triple-Bend Legs,
any Sunbrella® color canvas,
Montauk® 17/170 Grab Rail Supports,
Raked Versions,
Spray-Shield,
Spray-Shield & Gull-Wings,
Montauk® Spray-Shield,
Montuak® Spray-Shield & Gull-Wings.
- Price:
- T-Topless™:
$1,589
plus shipping,
- Montauk-T-Topless™:
$1,639
plus shipping.
|
- Custom fit PhiferTex® Open-Weave Gear Loft, Black
- Braided Nylon Lacing Cord, Black
- US48 Shipping and Handling, Free with Top or $25
- Plus SC Local Sales Tax *
(click for larger view)
|

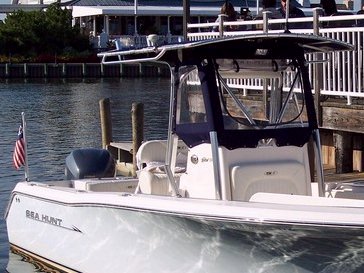

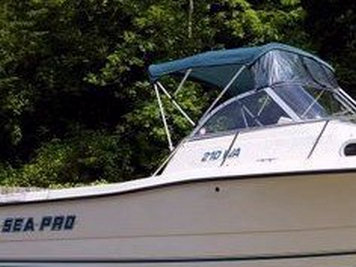

Spray-Shield for T-Topless™,
Montauk-T-Topless™,
Sea Pro®, Sea Boss®, Palmetto® & McKee®
...
$479
Provides protection from the wind and rain on T-Topless™ Montauk-T-Topless™
and several other Factory OEM T-Top frames.
For RNR-Marine™ T-Tops:
and these out-of production boats, using the original patterns for a factory fit:
- Sea Pro® Center Console and Bay Boats, 1987-2004
- Sea Boss® Center Console and Bay Boats, 2003-2004
- Palmetto Custom® Center Console Boats, 2001-2004
- McKee Craft® Center Console and Bay Boats, 1985-2008
Note: New Sunbrella® canvas made with the exact-to-size patterns originally used
to make the Original Equipment Manufacturer (OEM) factory canvas.
The original boat manufacturers (who are no longer in production) and
their assigns do NOT endorse our replacement canvas.
Note: 200x year Sea Pro® OEM original factory Spray Shields were white,
but we offer ANY Sunbrella® color to match your top or other accessories.
Note: 2 Week Delivery
- Custom size for each size of T-Topless™, Montauk-T-Topless™ or Factory OEM T-Top,
- 30 Gauge Clear Vinyl,
- Sunbrella® Marine Canvas frame,
- Attaches with Velcro® and Bungee ball ties,

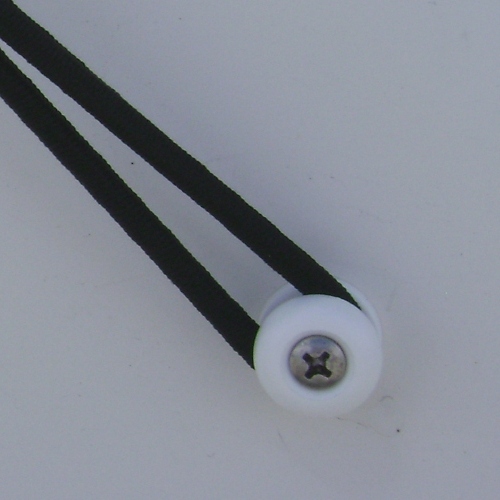

- May require mounting of 2 to 6 small, white 'knobs' (included) with
` Stainless Screws (included)
to console for bungee balls to attach to,
- Zippers on each side for Gull Wings (below),
- $25 Shipping and Handling to US48,
- Plus SC Local Sales Tax *
Topless™: Skinny, Narrow, Medium or Wide width Version:
(click for larger view)
(click for larger view)
Montauk-T-Topless™ Version (for Montauk™ 17 only):
(click for larger view)
(click for larger view)
|

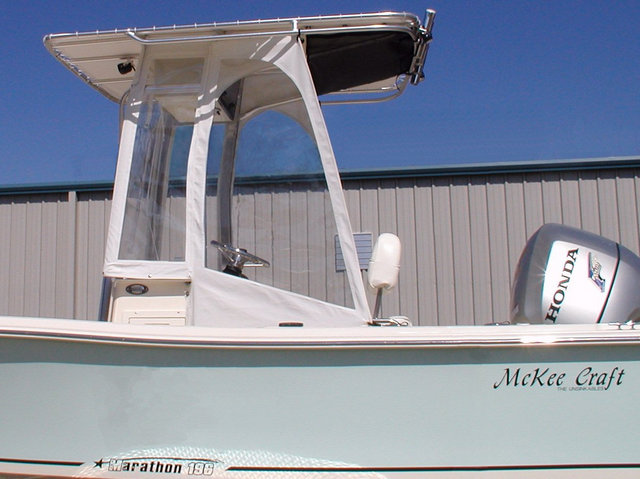

Gull-Wings for T-Topless™,
Montauk-T-Topless™,
Sea Pro®, Sea Boss®, Palmetto® & McKee®
...
$499
Zips onto the matching Spray-Shield (above) to provide
additional protection from spray, wind and rain.
For RNR-Marine™ T-Tops:
and these out-of production boats, using the original patterns for a factory fit:
- Sea Pro® Center Console and Bay Boats, 1987-2004
- Sea Boss® Center Console and Bay Boats, 2003-2004
- Palmetto Custom® Center Console Boats, 2001-2004
- McKee Craft® Center Console and Bay Boats, 1985-2008
Note: New Sunbrella® canvas made with the exact-to-size patterns originally used
to make the Original Equipment Manufacturer (OEM) factory canvas.
The original boat manufacturers (who are no longer in production) and
their assigns do NOT endorse our replacement canvas.
Note: 2 Week Delivery
- 30 Gauge Clear Vinyl.
- Sunbrella® 9.25oz Marine Canvas frame,
- Zips on to the Back Edge of the T-Topless™ Spray-Shield (above),
- Attaches at top and bottom with Bungee ball ties,
- May require mounting of 2 or 4 metal clips on gunwales
for bungee balls to attach to
(not required on Montauk-T-Topless Gull-Wings,
which simply Bungee Ball to the Montauk™ 17's exterior rails!),
- May require mounting of 2 to 6 small, white 'knobs' (included) to console
with Stainless screws (included) for bungee balls to attach to,
- $25 Shipping and Handling to US48,
- Plus SC Local Sales Tax *
Topless™: Skinny, Narrow, Medium or Wide width Spray-Shield with added Gull-Wings:
(click for larger view)
(click for larger view)
Montauk-T-Topless™ Spray-Shield with added Gull-Wings (for Montauk™ 17 only):
(click for larger view)
(click for larger view)
|
- Mount rear quick-release legs to flip seat rather than console grab bars.
- US48 Shipping and Handling, Free with Top or $25
- Plus SC Local Sales Tax *
(click for larger view)
|
- USCG Approved, 6-LED, 2 Nautical Mile (2nm) 360° All-Around White Navigation/Anchor Light
- US48 Shipping and Handling, Free with Top or $25
- Plus SC Local Sales Tax *
(click for larger view)
|
- Firms up Boston Whaler® Montauk 17 & 170 windshield Grab Rails
- 1" diameter 316 Stainless Steel Tubing with 316 Stainless fittings Tig Welded on Ends
- Spacers and Stainless Mounting Bolts, Washers & Nuts
- Mounts between grab rail and windshield bolts (drill no holes!)
(click for larger view)
(click for larger view)
|
|
Rod Holders ... $75 per pair (2)
Mount thesse on the sides of our tops for a "cool" swept back look (and can be used as long riggers).
- AISI Type 304 Polished Stainless Steel Clamp-On Rod Holders
- 7/8' or 1" rail (Inside Diameter of fitting)
All top frame sizes in stock, ready to ship!
|

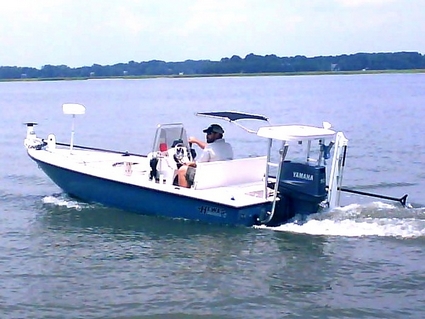

Shade for Flats Boats ...
$593
Poling platform mounted shade for your flats boats. Can even be removed in minutes.
The Flats-Top™ provides shade for flats boat,
usable at speed (up to 65mph), and easily removable for fly fishing on cooler days. It installs in about an hour,
and provides refreshing, cancer-avoiding shade for 2 people seated at the boat's console.

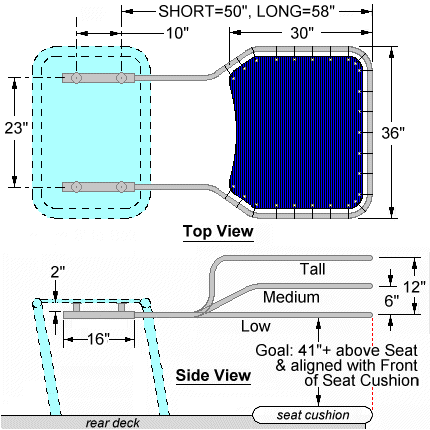

- Note - The "Depth" dimension "D" is from the bottom of the poling platform surface
to the bottom of the aluminum frame
or the fiberglass lip around the outside of some poling platforms (whichever is the largest #).
We need this dimension to provide proper clearance (using spacers if needed)
for the Flats-Top to fit under your platform. Typcial Depths are 1-1/2" to 2-1/4".
All top frame sizes in stock, ready to ship!
|

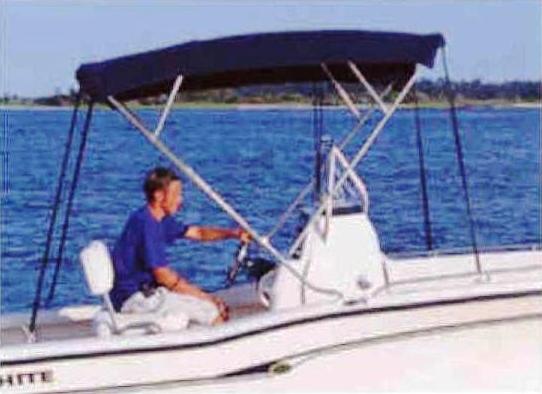

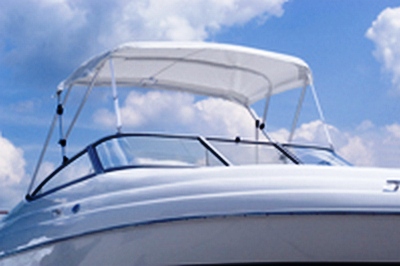

Factory Fit Replacement Top Canvas ... $269
New Sunbrella® marine fabric canvas for T-Topless™, Montauk-T-Topless™,
Shadow™, Montauk-Shadow™, Flats-Top™
and several other Factory OEM T-Top and Bimini frames (T-Top & folding style):
For RNR-Marine™ T-Tops:
- T-Topless™
- Montauk-T-Topless™
- Shadow™
- Montak-Shadow™
and these out-of production boats, using the original patterns for
factory fit T-Top and Bimini-Tops:

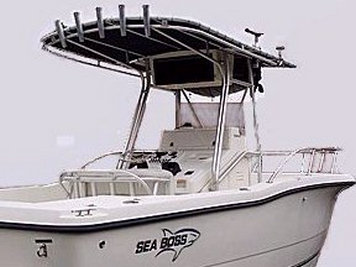

- Sea Pro® Center Console (with EMC® OEM T-Top in picture above), Dual Console, Bay and Walk-Around Boats, 1987-2004
- Sea Boss® Center Console, Dual Console and Bay Boats, 2003-2004
- Palmetto Custom® Center Console Boats, 2001-2004
- McKee Craft® Center Console, Dual Console, Bay and Walk-Around Boats, 1985-2008
Note: New Sunbrella® canvas made with the exact-to-size patterns originally used
to make the Original Equipment Manufacturer (OEM) factory canvas.
The original boat manufacturers (who are no longer in production) and
their assigns do NOT endorse our replacement canvas.
Note: This factory-fit replacement top canvas will
ONLY fit T-Topless™, Shadow™, Factory T-Tops or Factory Bimini-Tops.
RNR-Marine™ will NOT accept returns for covers ordered to fit
other, aftermarket tops.
Note: 2 Week Delivery
- Replacement Sunbrella® Marine Canvas for Lacing on the Top's Frame,
- Sunbrella® 9.25oz Marine Fabric with 10-year Warranty,
- Neobraid #4 (1/8") Black Braided Lacing Cord,
- Nickel-Plated Grommets,
- Only canvas that fits RNR-Marine™ tops,
- Canvas is included in your RNR-Marine™ T-Topless™ or Shadow™ purchase,
- All Canvas made with New Sunbrella® using the
patterns that were used to make the original, factory OEM T-Top or Bimini Top,
- Plus shipping & SC Sales Tax for SC Buyers.
|

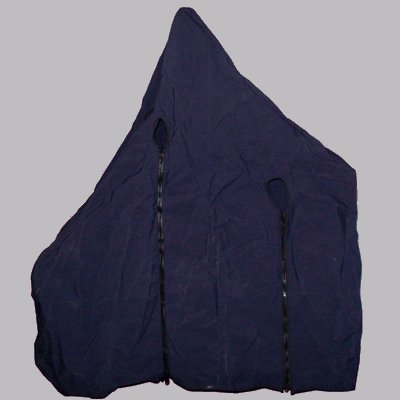

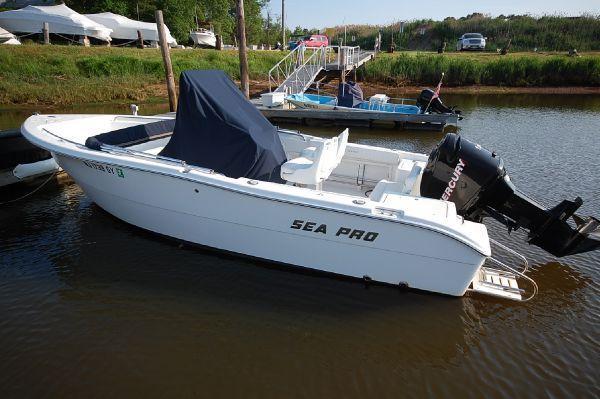

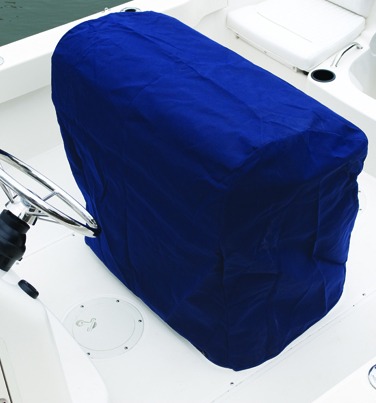

Factory Fit Center Console Cover ... $389
New Sunbrella® marine fabric canvas console covers factory fit to consoles With OR Without Factory T-Tops.
For these out-of production boats, using the original patterns for a factory fit:
- Sea Pro® Center Console and Bay Boats, 1987-2004
- Sea Boss® Center Console and Bay Boats, 2003-2004
- Palmetto Custom® Center Console Boats, 2001-2004
- McKee Craft® Center Console and Bay Boats, 1985-2008
Note: New Sunbrella® canvas made with the exact-to-size patterns originally used
to make the Original Equipment Manufacturer (OEM) factory canvas.
The original boat manufacturers (who are no longer in production) and
their assigns do NOT endorse our replacement canvas.
Note: These factory-fit console covers will probably
NOT fit consoles with after-market T-Tops installed.
RNR-Marine™ ONLY guarantees fit for factory T-Tops,
and will NOT accept returns for covers ordered to fit non-Factory T-Tops.
Note: 2 Week Delivery
- Replacement Sunbrella® Marine Fabric Console Cover Canvas,
- Cut-Outs and Zippers to go around T-Top Legs if so-equipped (specify when ordering),
- Marine grade zipper(s),
- Nickel-Plated Grommets,
- All Canvas made with New Sunbrella® using the
patterns that were used to make the original, factory OEM Console Covers,
- Plus shipping & SC Sales Tax for SC Buyers
|
A PayPal account is NOT required, simply use your Credit Card through PayPal's Secure Credit Card processing service to order !
|
